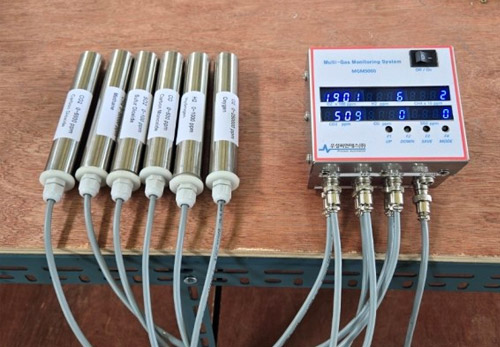

Soil Extraction Gas Analyzer
This measuring instrument is designed for gas monitoring device for the purpose of transmission via connection in internet with converted Modbus signal while going through the high temperature heating process of soil and extracted mixture gases is stored via membrane filter separately in ndividual gas condition, and goes through 1st processing for analyzing the gas density and converting the analog amplification signal to digital.
Feature and Application
- Suitable for portable with compact design
- Multiple gases monitoring and communication
- Local Display
- Measuring for O2, H2, CO2, CH4, CO
- Electrochemical Sensor, NDIR Sensor
- High accuracy and long-term stability
- Low power consumption DC12 V less than 50 mA
- Mixed gas flow measurement 0-10 LPM
- Communication output Modbus RTU
SYSTEM SCHEMATIC DIAGRAM
