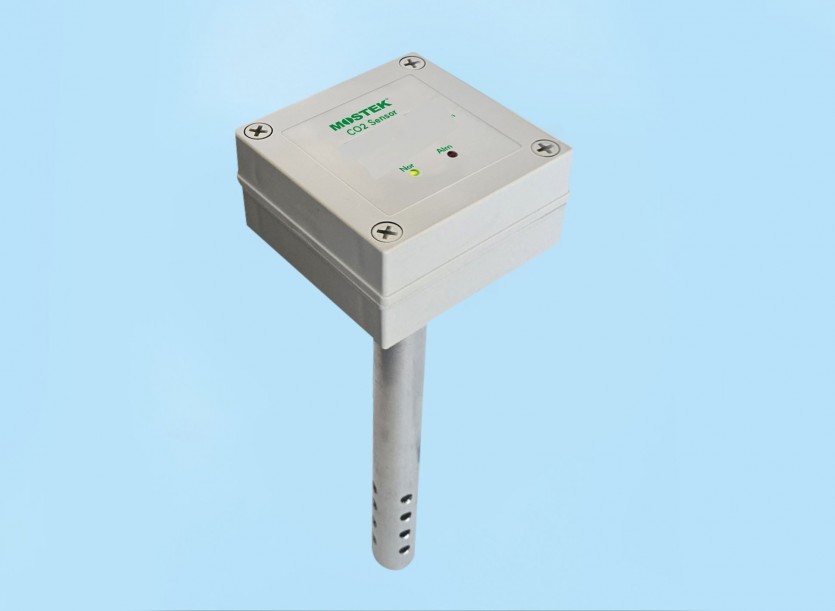

Low Cost Duct Carbon Dioxide (CO2) Transmitter
General Description
The MCD200LC utilizes the method of NDIR (Non-Dispersion Infra-Red) and measures the carbon dioxide concentration up to 0 – 10000 ppm in the ventilation systems, indoor office, meeting room, living space etc.
Its measurement range of 0- 10000 ppm covers range required to monitor compliance with ASHRAE or other ventilation efficiency standards. Packaged in a compact, distinctively styled enclosure that can be used for living space, meeting room, livestock farm, horticulturam farm, fruit grower, mushroom farm and greenhouse.
The model MCD200LC provides two outputs 4-20 mA and 2 relay contact outputs as standard. The status normal and alarm lamps are available . An optional two relay contacts and alarm setting can be configured by the program using the remote terminal TOTE-BOX TB101.
NDIR sensor is most stable and does not require any recalibration and it use semipermanently for carbon dioxide measurement
Feature and Application
- High Accuracy NDIR Sensor
- Output 4-20 mA DC
- Robust Steel (AL) probe for easy Installation
- Relay Contact Output 2 x SPDT 3 Amp 30 VDC
- Configurable in Field System
- Dual Alarm H, HH, Relay Output, Status Indication LED
- Programmable Parameter by Remote Terminal TB101
- Dual Vertical Mounting (Up-Dwnn, Down-Up Orientation)
- Long-term Sensor life (Semipermanent)
Technical Specification
| Measuring Method | Non-Dispersion Infra-Red / Dual Sensor |
|---|---|
| Accuracy | < ±(50 ppm +2 %MV) @25°C |
| Power Supply | 12~24 VDC, 24 VAC |
| Output | 4~20 mA , 2 x Alarm SPDT Relay |
| Repeatability | ±20 ppm |
| Measuring Range | 0~10000 ppm (Programmable Measuring Range by 4-Keypad) |
| Dual Alarm Setting | Alarm 1 / Alarm 2 (Programmable Alarm Setting by 4-Keypad) |
| Response Time | Less 2 second |
| Status Indication | Normal (Less than Alarm) Green LED on, Abnormal (Over than Aalrm) Red LED on |
Dimensions
Mostek reserves the right to make changes without further notice to any products to improve reliability , function, or design.
QUICK PROGRAM MENU
- CO2 Programming
- How to Set-up to CO2 Mode
. Press S1 + S4 for 3 sec, and then Set-Up mode displays.
. Press S4 to go F1 mode. - If F1 mode is CO2 fixed , no need to select CO2 mode.
- Once program has started the following menu appears, and enter the parameter adjustment as shown below procedures
Ordering Code
| Product Code | MCD200LC | Duct Carbon Dioxide(CO2) Transmitter | |
|---|---|---|---|
| Code 1 | Power Supply | P024 P099 |
24 VDC- 24 VAC Option, On request |
| Code 2 | Probe Length | L025 LXXX |
25 Cm Probe Length (STD) On Request (ex. L030=30Cm) |
| Code 3 | Measuring Range | R1000 R2000 R3000 R4000 R5000 R0000 |
0~1000 ppm Factory Set (Adjustable by Program) 0~2000 ppm Factory Set (Adjustable by Program) 0~3000 ppm Factory Set (Adjustable by Program) 0~4000 ppm Factory Set (Adjustable by Program) 0~5000 ppm Factory Set (Adjustable by Program) On Request, ( xxxx ) ppm , Max 10000 ppm |
| Code 4 | Alarm 1 Setting | A1N A1Y |
None Alarm 1 – Same as Span Alarm 1 set , ( xxxx ) ppm on Request |
| Code 5 | Alarm 2 Setting | A2N A2Y |
None Alarm 2 – Same as Span Alarm 2 set , ( xxxx ) ppm on Request |
| Code 6 | Output | G420 | 4~20 mA |
| Code 7 | Remote Terminal | NRT YRT |
None TOTE-BOX TB101 |
| Code 8 | Customer’s Special Specification | SCRN SCRY |
None Consult Factory |
