  • Product Name

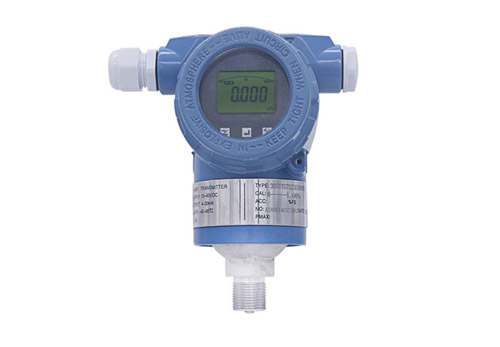

  • Gage Pressure Transmitter
    Product Inquiry
  • Model
  • MGP101

    • Gage Pressure Transmitter

    Decription

    MGP101 high precision intelligent smart gage pressure transmitter was developed based upon the metal diaphragm capacitance and most internationally advanced technology with patented processing method. This product provides the optimized solution for requirement industrial adoption of measurement of gage pressure, absolute pressure, vacuum as well.

    Feature and Application

    • Adoption of high advanced technology with metal diaphragm capacitive differential pressure sensor
    • Update time less than 200 ms over output current
    • Improved performance, increased accuracy and stability
    • 0.075% high accuracy
    • Directly setting the parameter by key-board
    • 4~20 mA output and HART communication
    • Auto zeroing adjustment by key-button
    • Explosion proof housing, weather proof housing
    • Apply for petrochemical, chemical, metallurgy, power generation, food & beverage, pulp & paper, pharmaceuticals, science equipment, military & aerospace

    Technical Specification

    ← Scroll left and right to view the content →
    Item Description & Specification
    Process Media Liquid, Gas
    Applicable Pressure Absolute Pressure, Gage Pressure
    Measuring Range 0-16 kPa ~ 0-1.0 kPa (Minimum) 0-4MPa ~0-20.0 Mpa (Maximun)
    Accuracy ± 0.075% Full Span
    Long-term Stability ± 0.15% of URL for 2 years
    Operating Temperature -25 ~ +95 ℃
    Operating Pressure Max 100 Mpa
    Material Connection Stainless Steel 304/316
    Diaphragm Stainless Steel 316L/Hastelloy-B / Hastelloy-C / Monel / Tantalum
    Name Plate & Tag Plate Stainless Steel 304 / Stainless Steel 316
    Electronics Housing Low Coper Cast Aluminum Alloy with Polyuretan, Light Blue Paint
    Protection Grade IP65 (Standard) , Intrinsically Safe Eex ia IIC T5(Standard), Explosion-proof Ex D IIB T5
    Display 5 Digits Programmable & 100% Bar-graph
    Display Engineering Units Std. 22 Different Engineering Units, 5 Digit Programmable for Special Unit
    Key-pad 3 Internal Keys for Programming and Output Setting
    Current Output 4-20mA 2-wires + HART Signal (Compatible) Load: Rohm=(Vdc-9)*50
    Power Supply 9-36 VDC
    Damping Time 0~32 seconds
    Response Time 200 ms
    Mounting Direct Mounting or Bracket on 2" Pipe
    Humidity Limit Range 0~100 % Relative Humidity
    Turn-on Time 2 seconds with Minimum Damping
    Zero Calibration Automatic Zero Calibration by Press-Button
    Cable Entry M20 Conduit Threads / 1/2" NPT (Female)
    Thermal Effect +/-0.18% ~ +/- 0.5% of Span per 20 ℃
    Vibration Effect +/-0.05% of URL per g to 200 Hz in any axis
    Electromagnetic Interference Radio Frequency Interference (EMI/RFI) Follows SAMA PMC 33.1 from 20 to 1000 MHz and for Field Strength up to 30 v/m
    Process Connection Conduit 1/4" - 18 NPT 1/2" - 14 NPT with (Adaptor)
    Ambient Temperature -25 ~ +80 ℃
    Size 102 mm (W) * 160 mm (H) * 130 mm (D)
    Weight 1.3 Kg

    Measurement range

    ← Scroll left and right to view the content →
    Code Pressure Range Transmitter
    Low Range High Range Low Range High Range DP GP AP
    2 0-0.16 kPa 0-1.0 kPa 0-16.32 mmH2O 0-102.0 mmH2O ◆ ◆
    0-1.6 mbar 0-10 mbar 0-06423 inH2O 0-4.015 inH2O
    0-0.023 psi 0-0.145 psi 0-0.001 Kg/Cm2 0-0.010 Kg/Cm2
    3 0-1.0 kPa 0-6.0 kPa 0-102.0 mmH2O 0-611.82 mmH2O ◆ ◆
    0-10 mbar 0-60 mbar 0-4.015 inH2O 0-24.088 inH2O
    0-0.145 psi 0-0.87 psi 0-0.010 Kg/Cm2 0-0.061 Kg/Cm2
    4 0-6.0 kPa 0-40 kPa 0-611.82 mmH2O 0-4078 mmH2O ◆ ◆ ◆
    0-60 mbar 0-400 mbar 0-24.088 inH2O 0-160.6 inH2O
    0-0.87 psi 0-5.802 psi 0-0.061 Kg/Cm2 0-0.408 Kg/Cm2

    Wiring and Dimension
