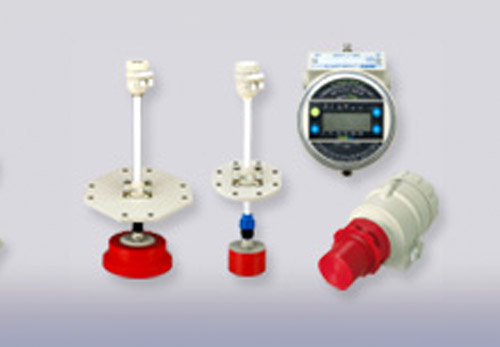

Ultrasonic Level Transmitter - Towa Seiden
Description
The ultrasonic level metering technology is based on the principle of measuring the time required for the ultrasound pulses to cover the distance from the sensor to the level to be measured and back.
The echoes bounced back from the surface of the medium to be measured reach the sensor surface after the time of flight of the ultrasonic impulse. The time of flight of the reflected signal is measured and processed by the electronics, and then this is converted to distance, level, volume or flow proportional data with the help of the customizable tank dimensions or the pre- programmed flume / weir parameters.
The intelligent QUEST+ process adaptive signal processing software system ensures that the electronics identifies and validates the liquid surface signal, giving reliable level monitoring.
Feature and Application
- Controller Integration Type (Standard)
- Minimize the limitation of installation circumstance by beam angle min 2.5º
- Max measuring range 60M
- Wiring for 4 wire, 2 wire (24VDC)
- No effect by gravity, viscosity, or temperature variation
- Multiple channel controller (max 15 ch)
- Adjustment of mounting position for narrow angle
- Application for water treatment, sewage, industrial process tank, chemical liquid tank, steel, smelting iron, nuclear , power plant, hydroelectric power plant
Technical Specification
| Item | For Liquid | For Solid | ||
|---|---|---|---|---|
| 2-wire | 4-wire | 4-wire | ||
| Measuring Range | 0.2-15m | 0.2-25m | 0.6-60m | |
| Accuracy | ±0.2% of measured distance +0.05% of range | ±0.2% of measured distance +0.1% of range | ||
| Power Supply | DC12-36V | AC85-255V DC20-28V | AC85-255V | |
| Process Connection | Threaded, Flanged | Flanged | ||
| Output | Analog | 4-20mA | ||
| Relay | SPDT DC30V 1A | SPDT AC250V 3A | ||
| Operating Temperature | ‒30‒+70℃ | |||
| Electrical Protection Grade | DC power supply Class Ⅲ | Class Ⅰ | ||
| Ingress Protection Grade | Transducer IP68, Housing IP67 | IP65 | ||
