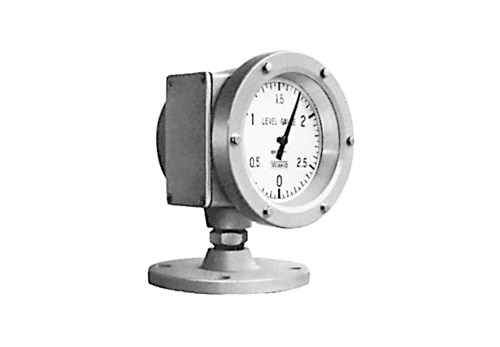

Gage Scale Level Transmitter - Towa Seiden
Description
LG100 series Dial Level Gage is a pointer visual scale type using a float that is mechanical liquid level gage for various process industry.
In addition it has the local indicator, DC 4-20 mA output transmission, and possible remotely level monitoring as well.
It supports Explosion Proof (d2G4) and allows the perfect measurement in hazardous area. Also provides various application models for the measurement of inferior circumstance and the harsh environment.
Feature and Application
- Simple mechanical construction, easy to read and repair & maintenance
- No power supply required
- Light and Compact and cost effective
- Optionally transmitter mounted model
- Apply for various floats over the wide applications
- Suitable for various tank such as Liquid storage tank, Cone-roof Tank, Horizontal Round Tank, Concrete Fit, Panel Tank
Technical Specification
← Scroll left and right to view the content →
| Item | Standard Specification | |
|---|---|---|
| Measuring Range | Max 4 – 30 meter |  |
| Display | One Needle Type (height display/capacity display/ height+capacity display) | |
| Operating Temperature | Max 120 ℃ | |
| Operating Pressure | Max 3.0 MPa | |
| Contact Output | Max 8 contacts 4-20 mA Resistance output Contact output + 4-20 mA OR Resistance Output |
|
| Contact Capacity | AC250V 10A / DC250V 0.3A DC250 3A AC250V3A/DC250V 0.2A |
|
| Material | SUS304 | |
| Ex-proof Grade | d2G4 | |
