Immersible Level transmitter
Description

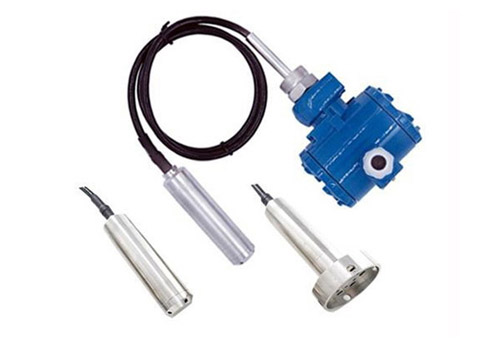

MPL501 Immersible Level Transmitter measures level depth exactly and proportionally using a high sensitive piezo-resistive sensor.
• The result value is converted to standard current or voltage signal through conditioning circuit, and in order to make a perfect performance set the linearized relationship between output signals. Unit has also a advantage of high accuracy and light weight class. Directly immersed into liquid measure easily a height between termination and water surface.
It is suitable for crude oil, chemical, power plant, municipal water, water reservoir, hydro power plant, dam and so forth. MPL501 series has been passed under long term life testing and stability, and used for very harsh environment. It has local indicator and adjustment function for zero and full span range.
Features and Application
- Utilized piezo resitive difusion silicon sensor technology
- Easy for installation as measuremnt of immersible probe type level depth
- Highly protection features as multiple protection design
- LCD local indication option
- Suitable for wide industrial application by various kinds of products
- Anti-corrision with stainless steel wetted parts
- Static level measurement
- Applicable for liquid vessel and tank
- Level measurement for waste water treatment and sweage water treatment
- For swimming pool, hot spring, sauna etc
- For measurement of level for agricultural well, river , stream, lake, sea
Technical Specification
| Item | Standard Specification | |
|---|---|---|
| Measuring Range | 0.5 ~ 200 m |  |
| Power Supply | 24 VDC | |
| Output Signal | 4-20 mA | |
| Operating Temperature | -20℃ ~ + 85℃ | |
| Media Temperature | -40℃ ~ + 125℃ | |
| Full Scale Temperature Coefficient | ± 1.5% FS | |
| Accuracy | ± 0.5% FS | |
| Over pressure Range | 300% FS | |
| Response Time | ≤ 1 ms | |
| Long Term Stability | ± 0.2% / year | |
| Ingress Protection Grade | IP68 | |
